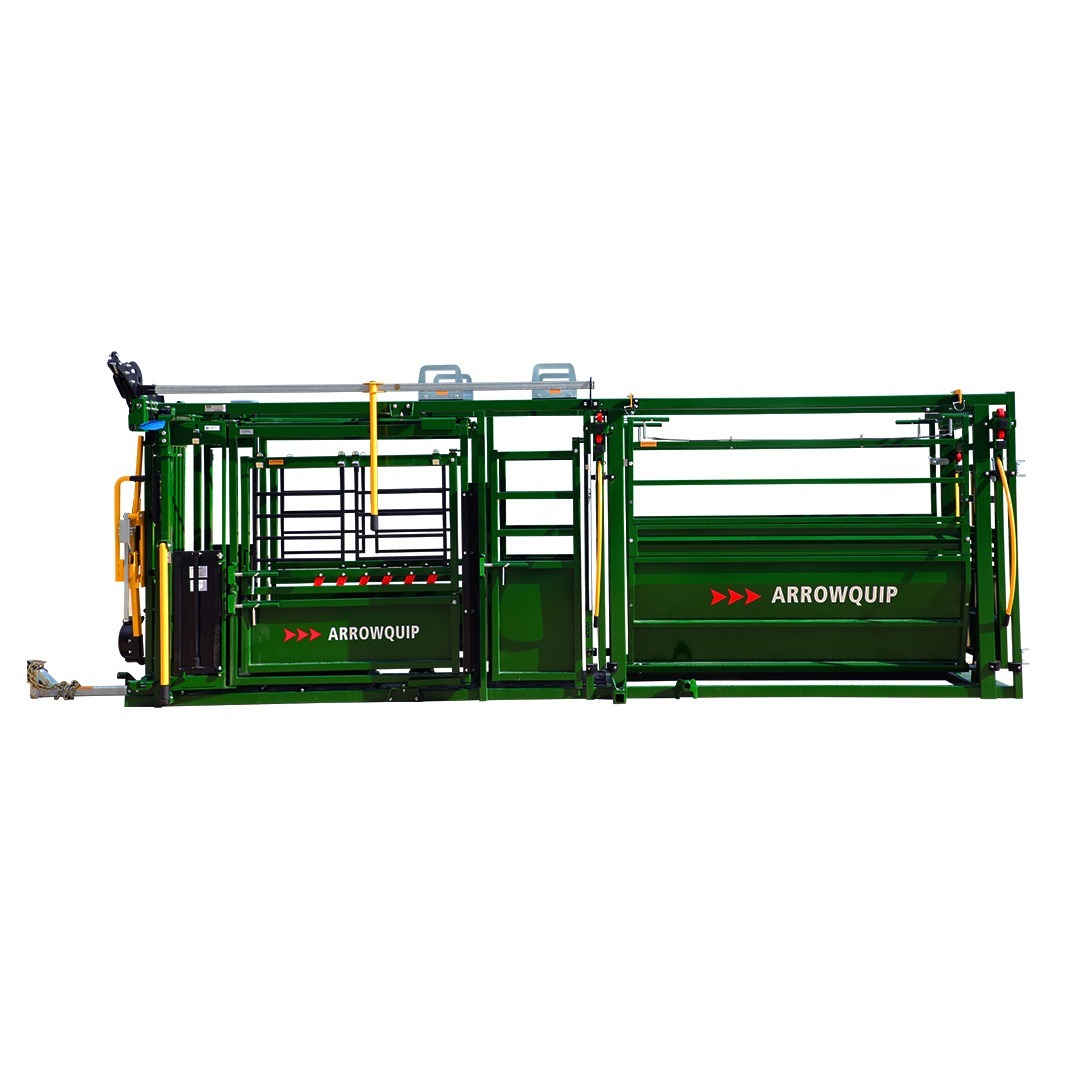

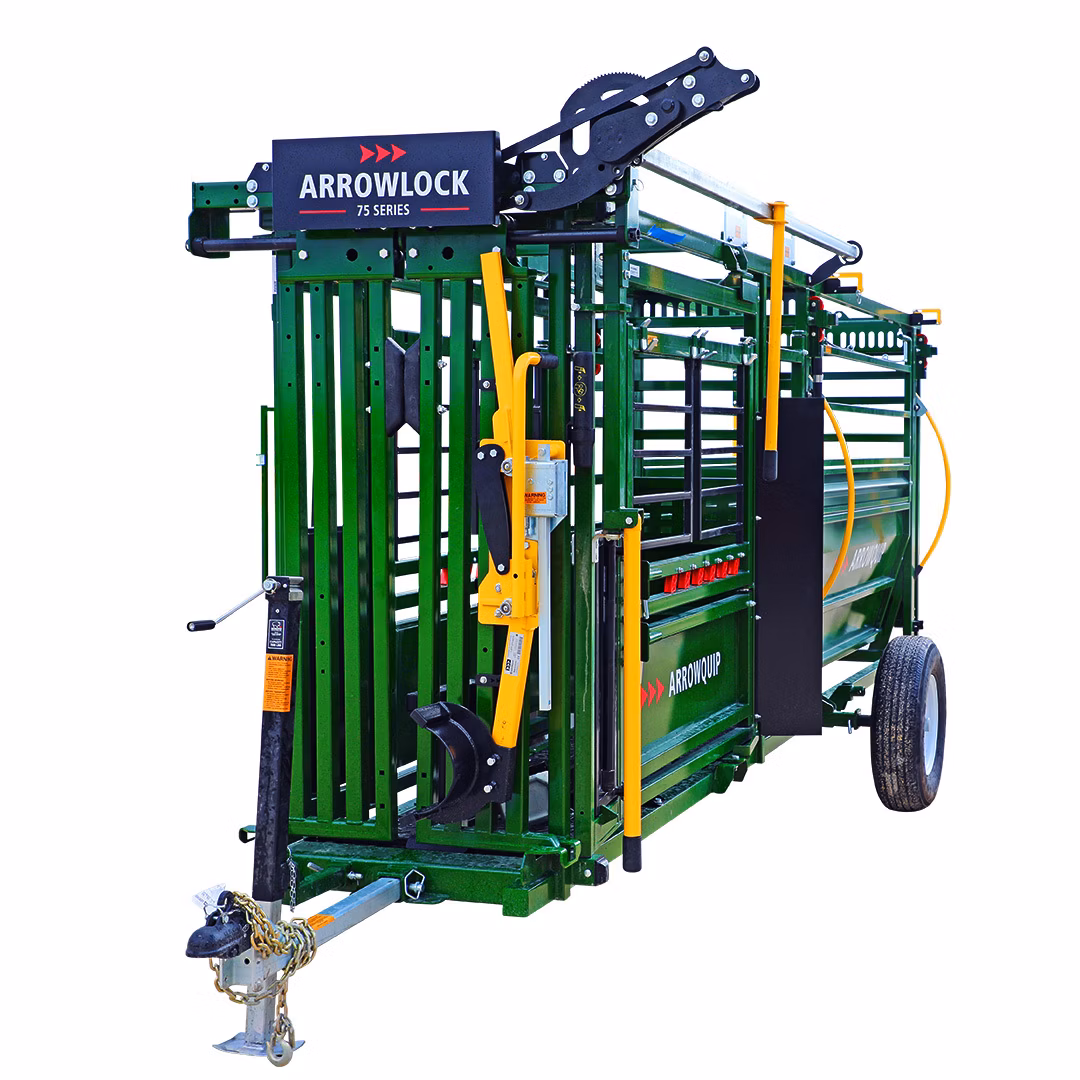

Portable Arrowlock 75 Series Chute & Alley [758]

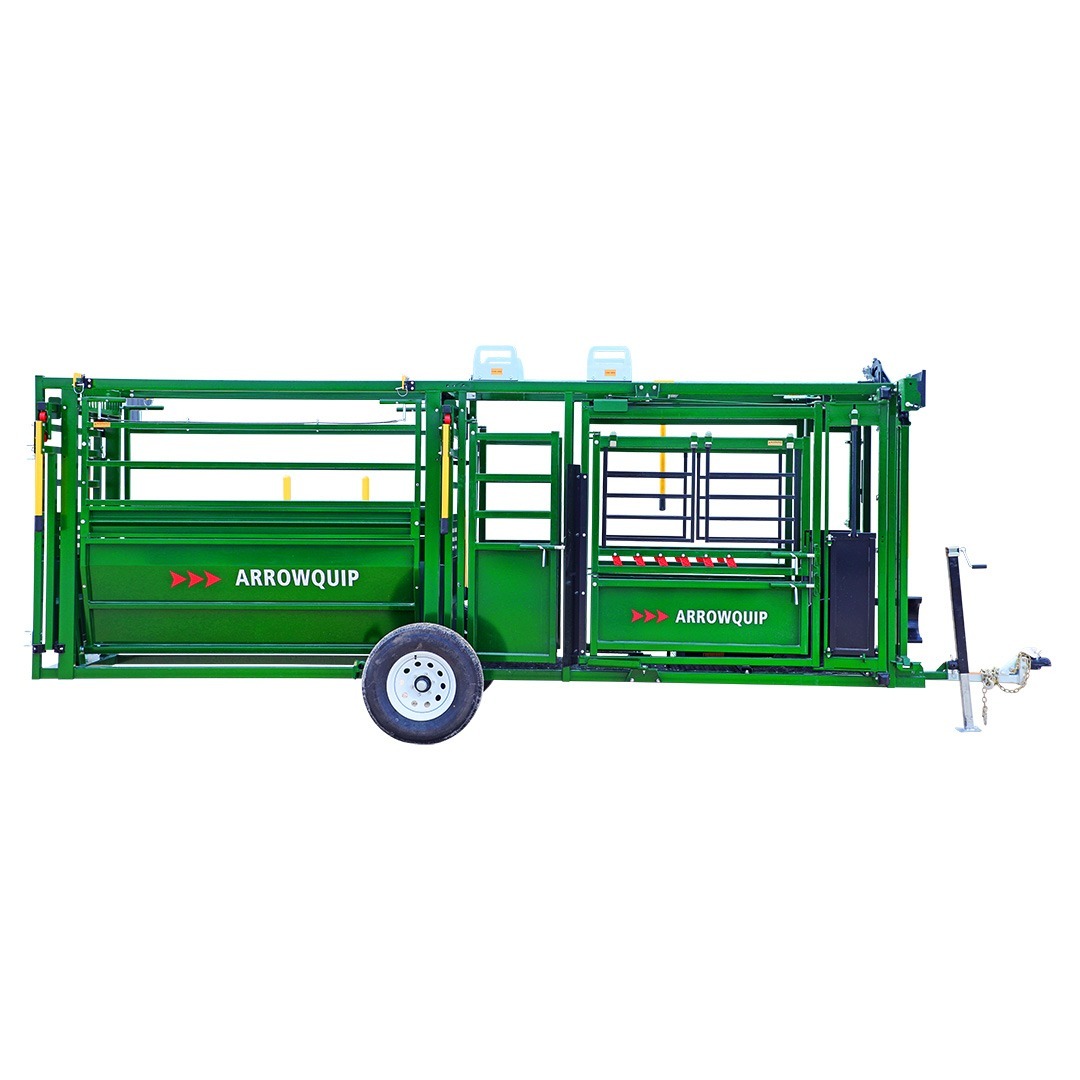

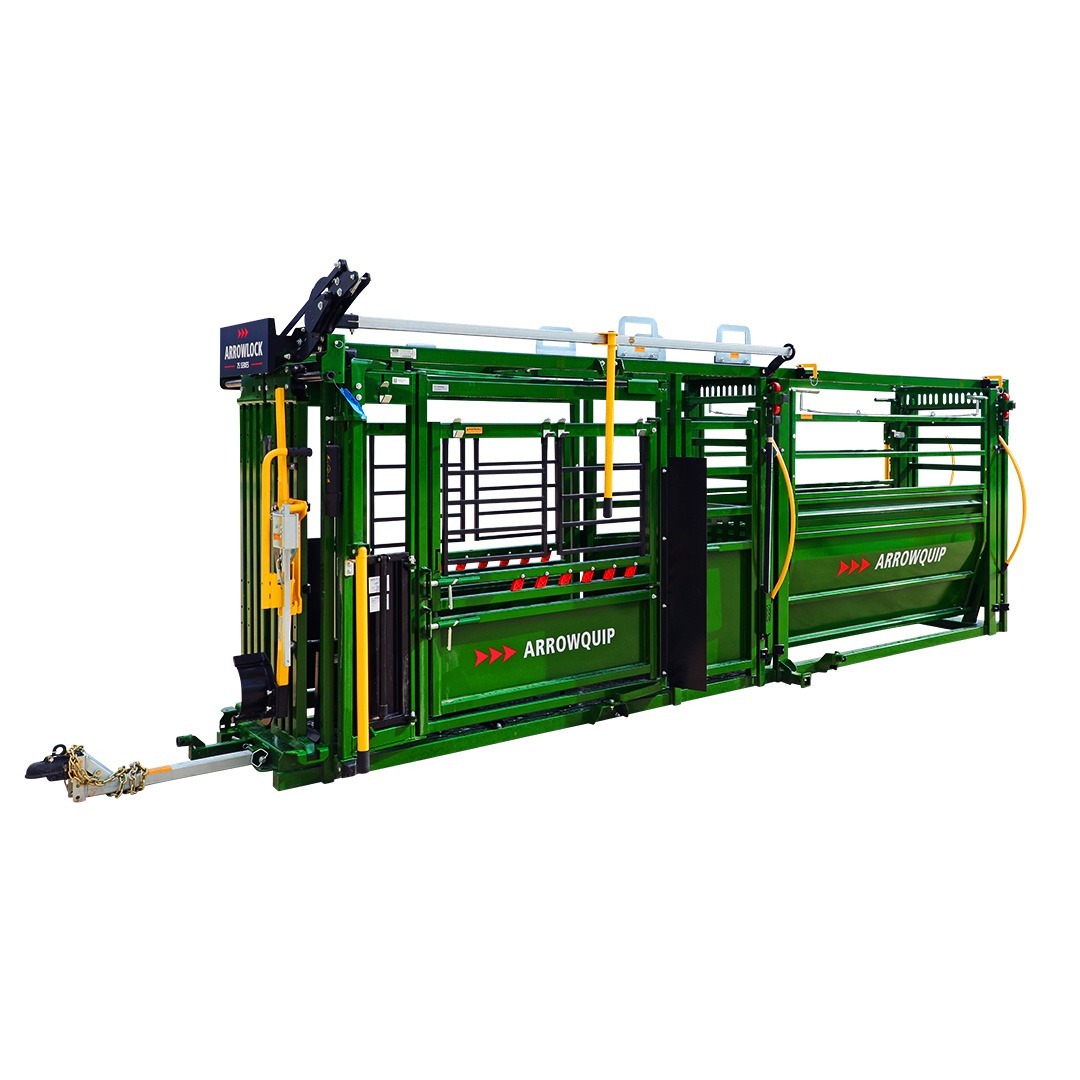

The Arrowlock 75 Series Portable Chute & Alley is an efficient on-the-go system. With the Arrowlock 75 Series chute combined with 8’ of Easy Flow Adjustable Alley, you are guaranteed a safe cattle handling experience. Made from durable North American heavy-duty steel paired a with true virgin rubber floor, this portable unit is built to withstand anything.

Key Features:

· 5-year warranty

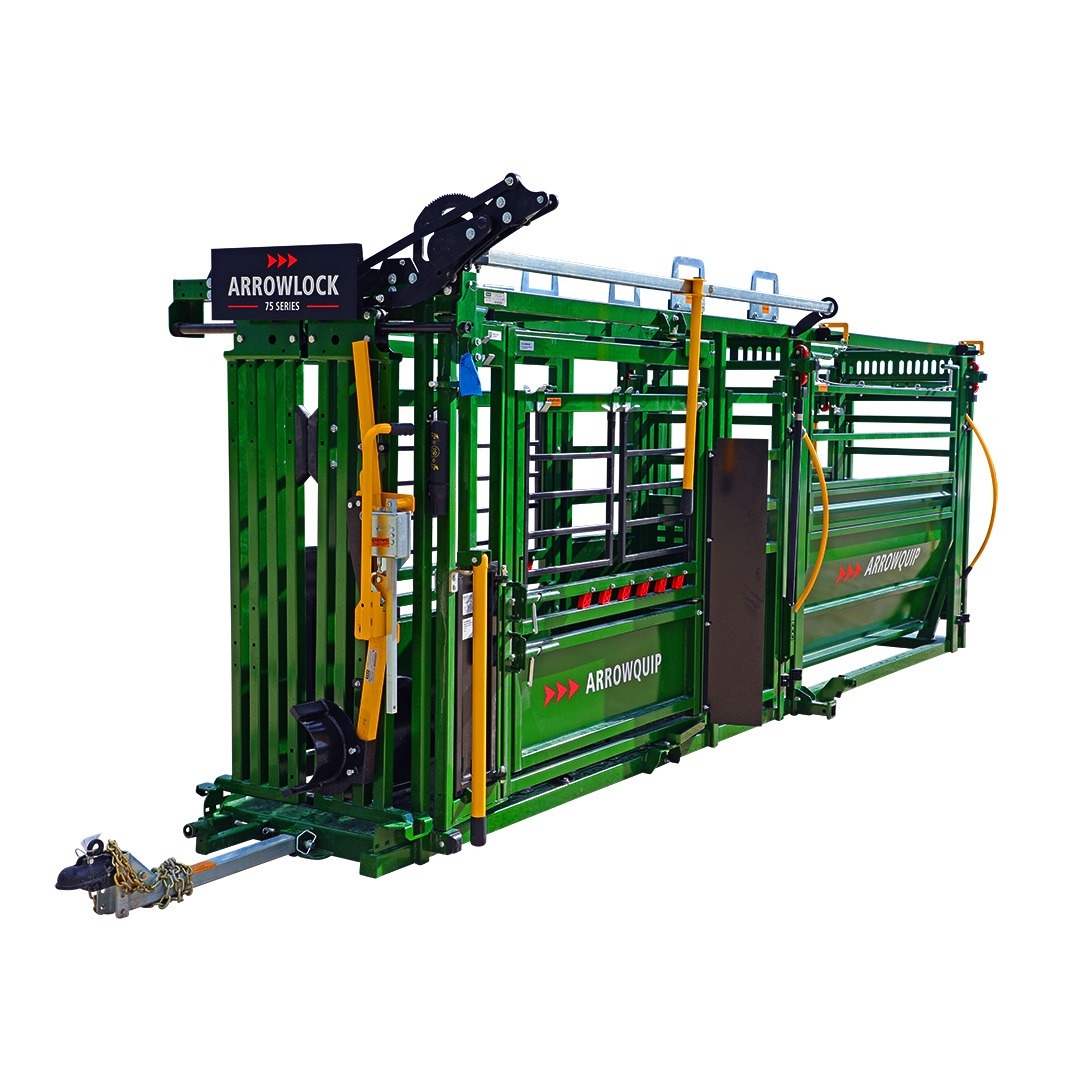

· 3E Arrowlock Head Gate design uses light to draw cattle into the chute for better flow

· Head gate opens to full 31.5” top to bottom

· Locking mechanisms, rump fingers, and rubber floors are backed with lifetime warranty

· Easy Flow Adjustable Cattle Alley comes with removable panels to control what cattle see

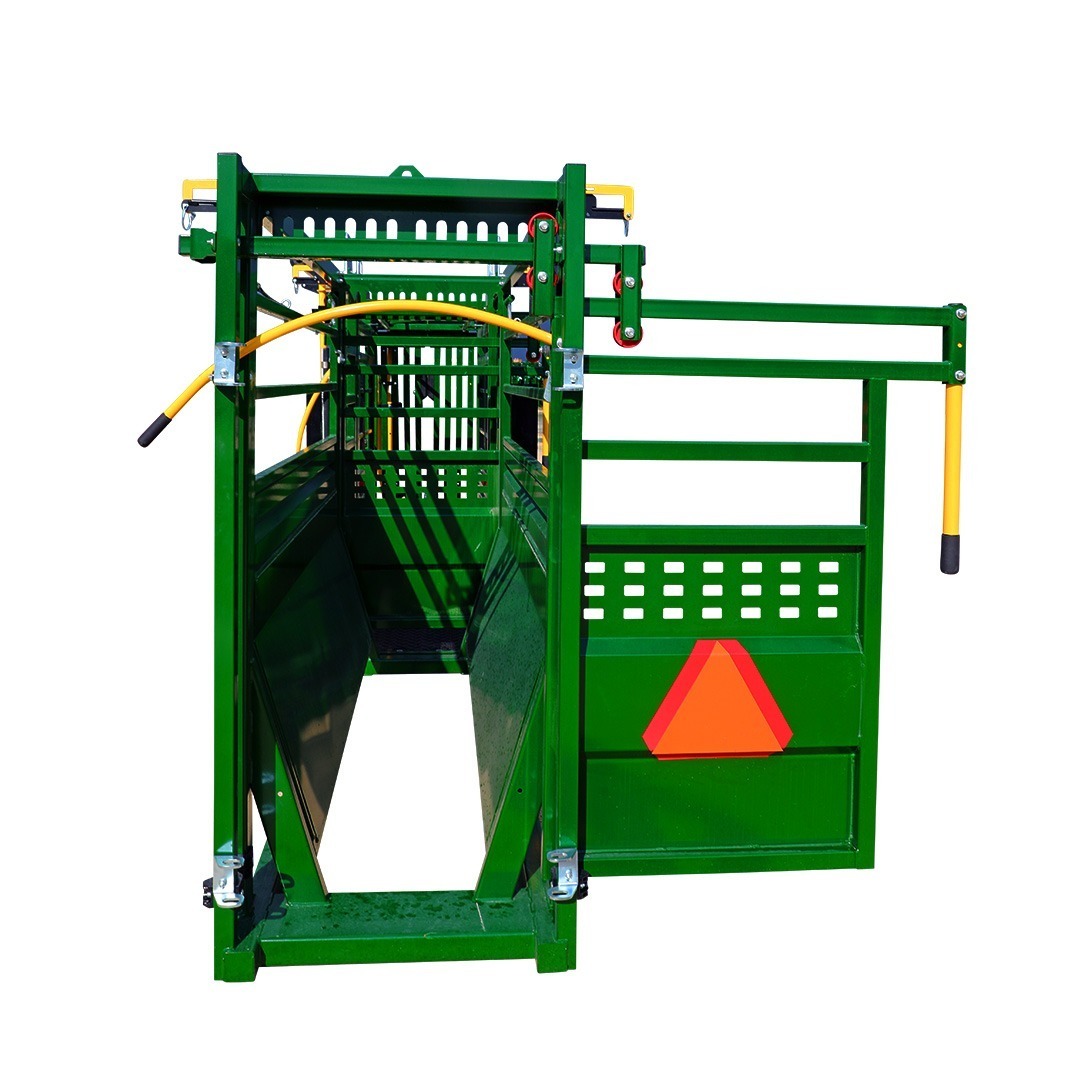

· Two top mounted rolling doors

Additional Information:

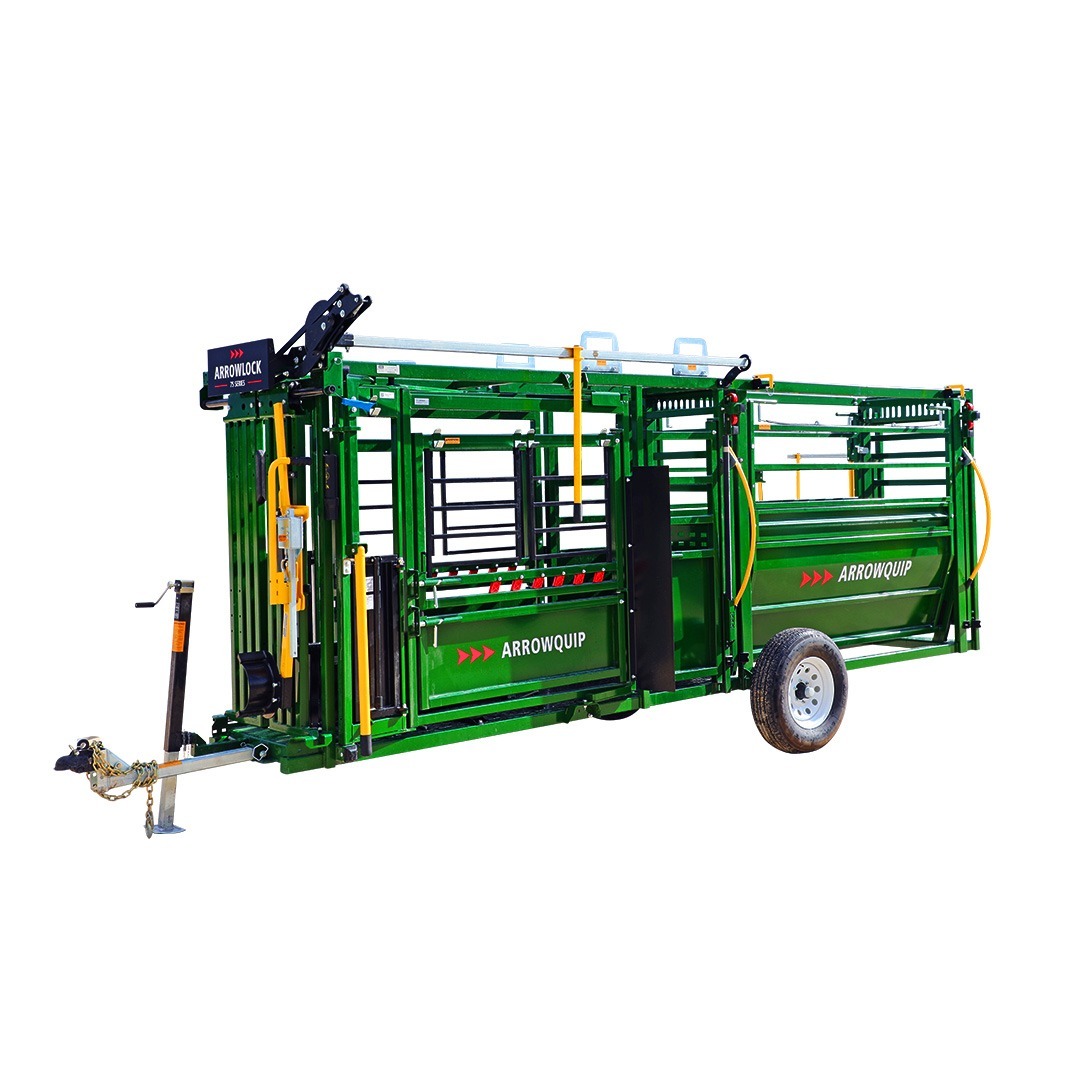

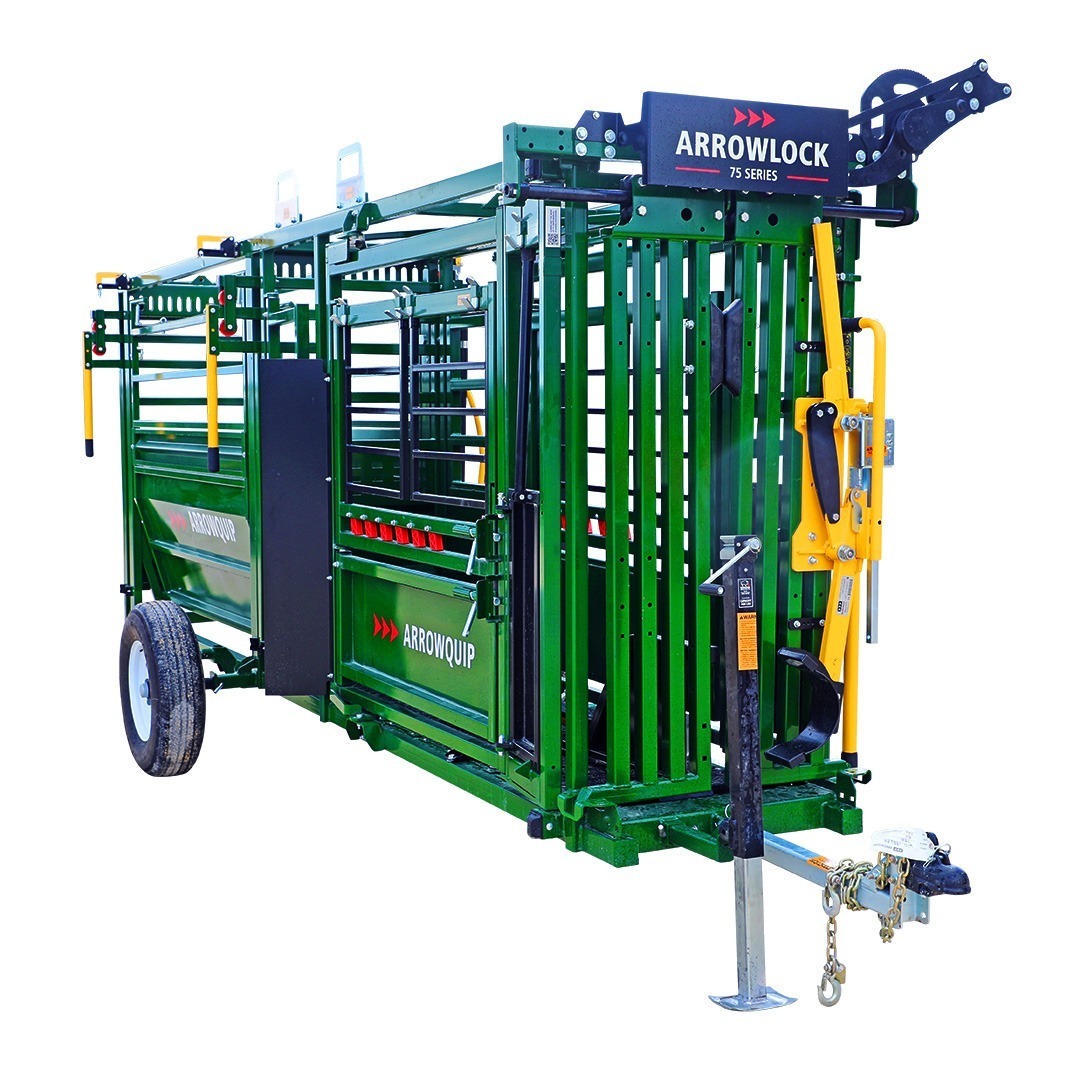

· Transport & scale-ready

· Head gate handle can be situated anywhere along the side of the chute

· Rolling tail gate is top mounted to eliminate buildup and can be operated from either side of the chute

· Vet door swings 180° in and out of the chute

· Side access doors can be used independently or together

· Squeeze ranges from 31.5” to 7.75” with a parallel squeeze

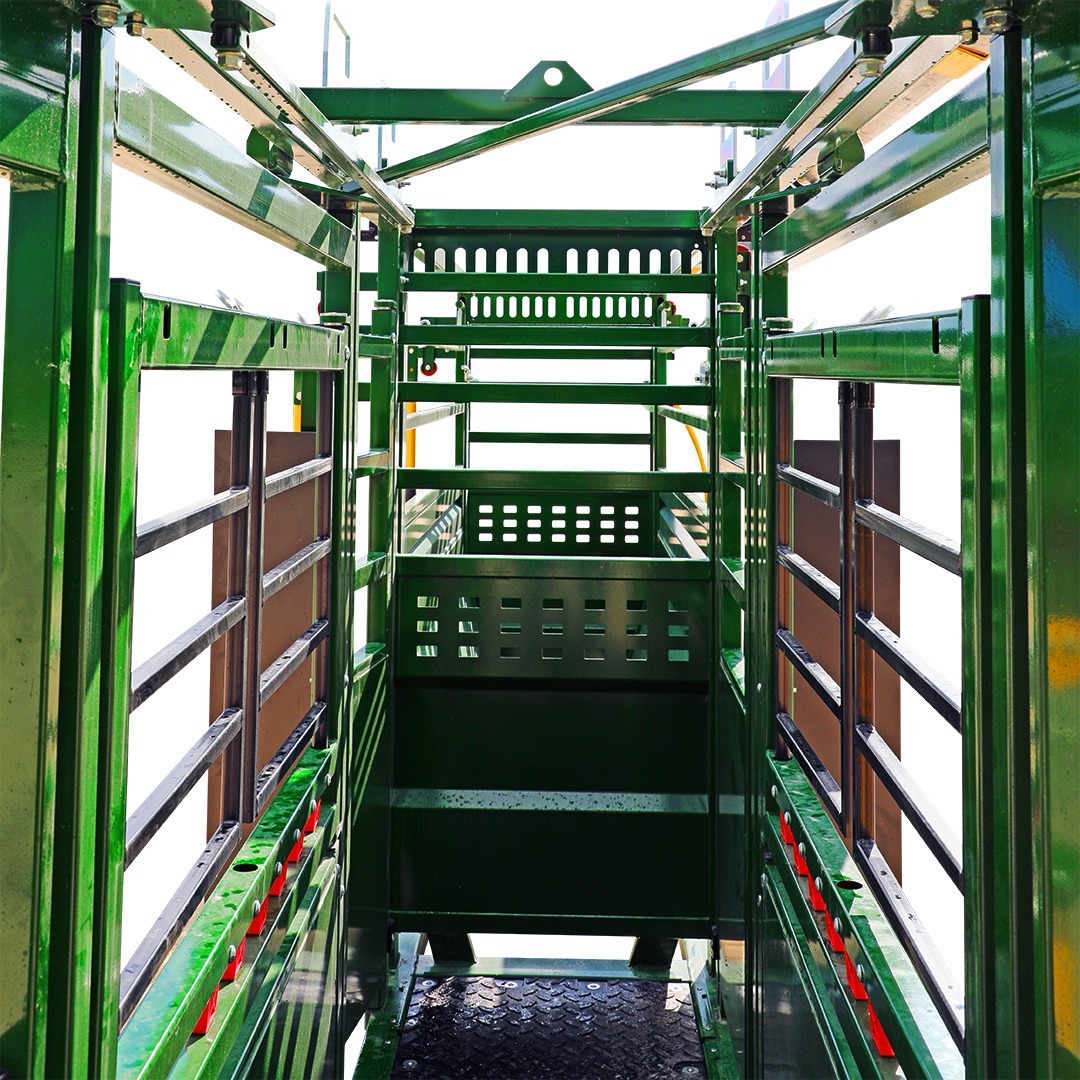

· Quietest flooring made from maintenance-free, molded rubber

· Drop-down needle bar lets you quickly access the animal’s neck

· 12.75” needle access

· Rectangular tubing limits cattle bruising and injury

· Cradle-shaped alley sections range from 31.5”to 21” in width

· Easy Flow Cattle Alley sides can be adjusted from one side

· Side panels of the Easy Flow Alley drop down fully to quickly access the animal in case of emergency

· Safety latches on the side panels ensure sides will not drop accidentally

· No assembly required
