Made with all high strength 50,000 psi Steel!

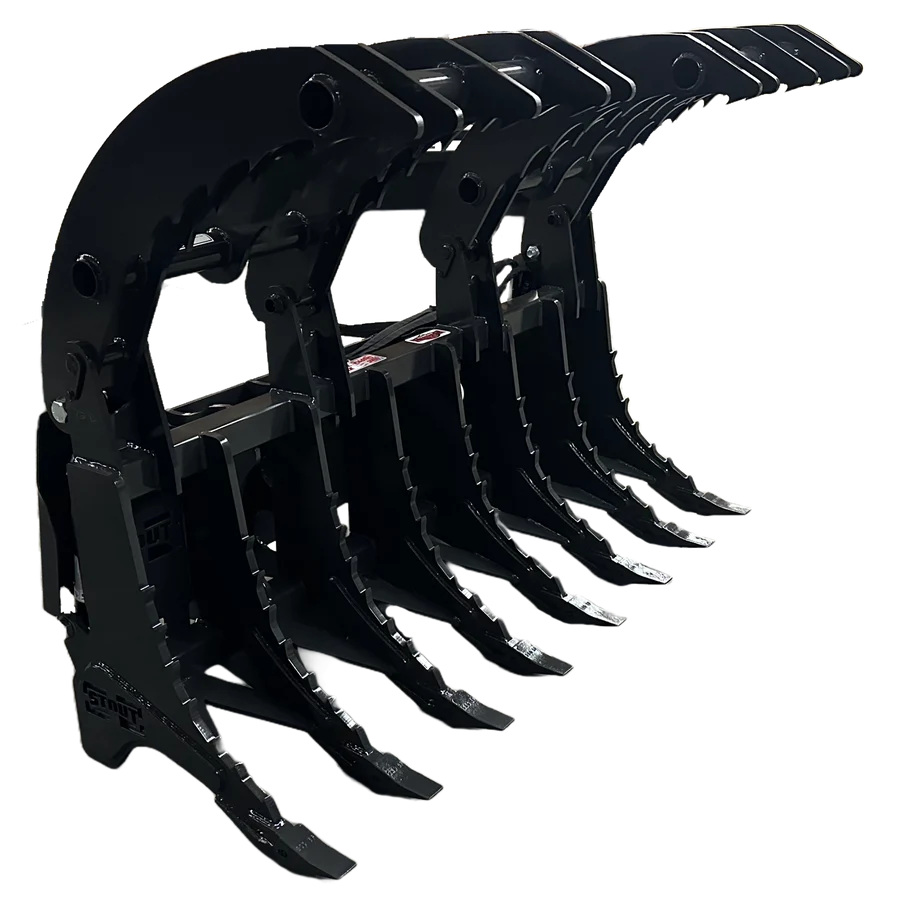

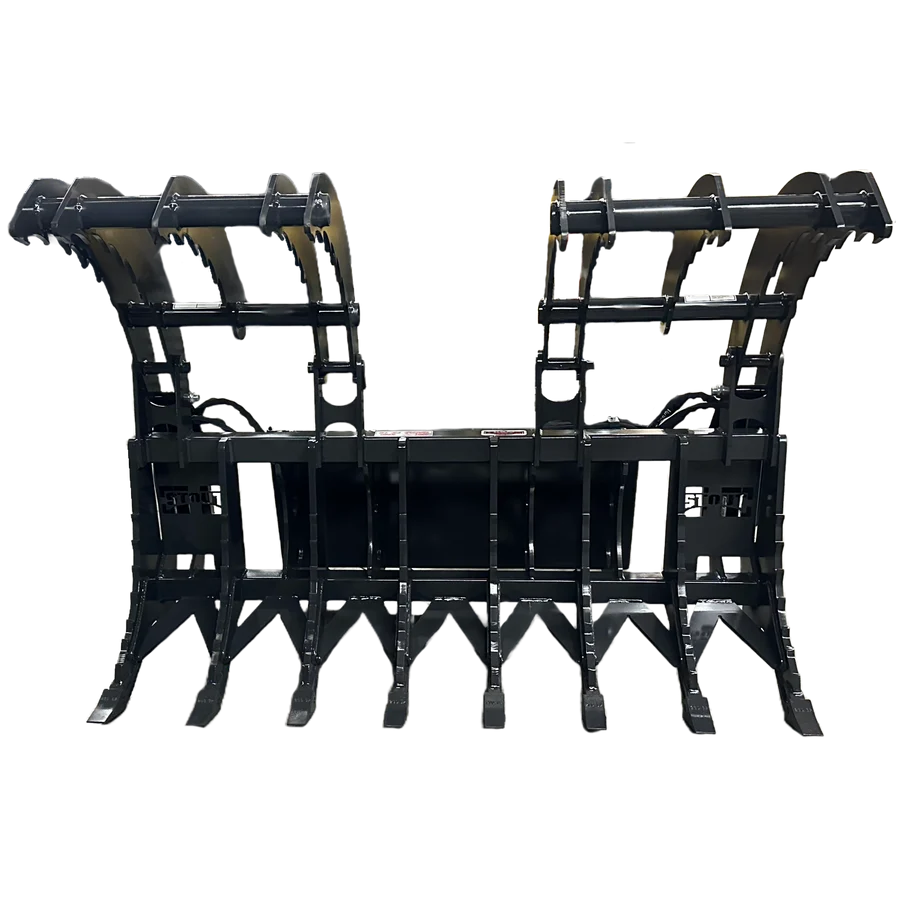

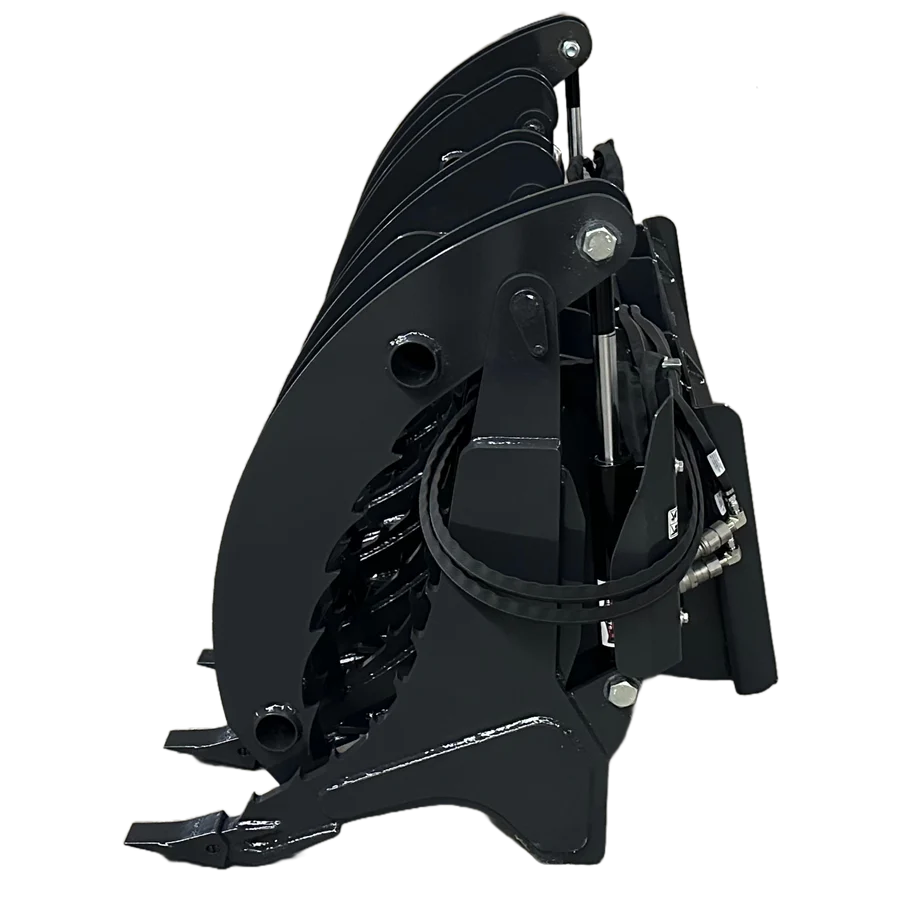

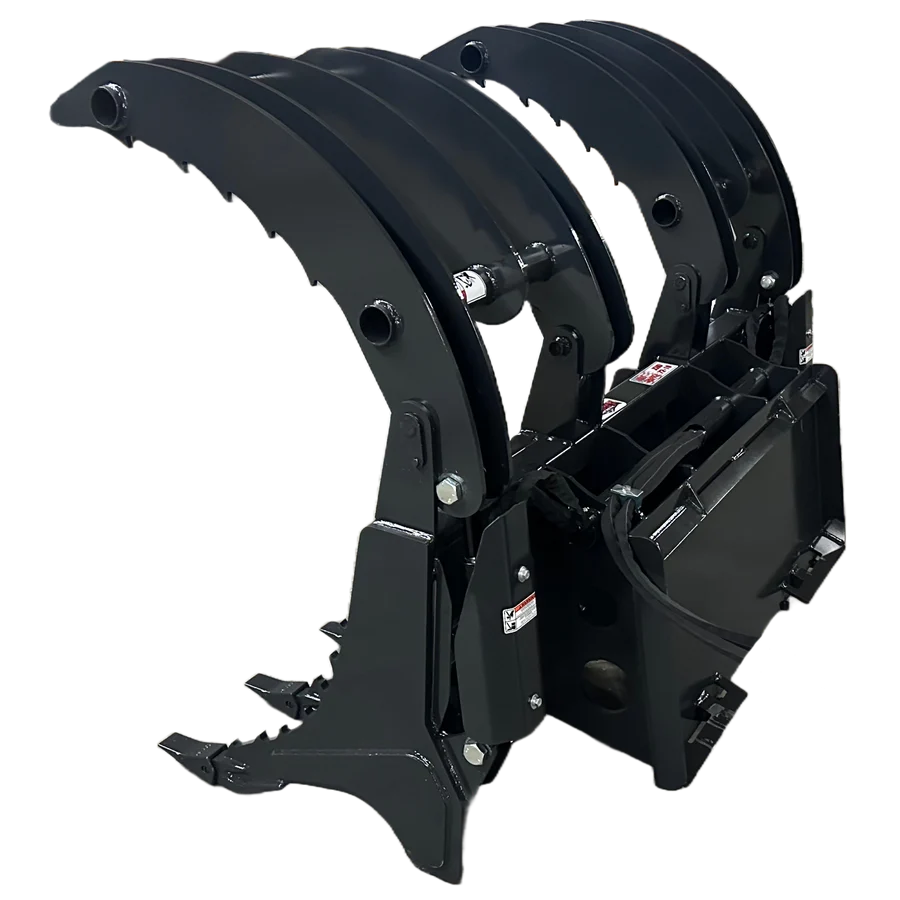

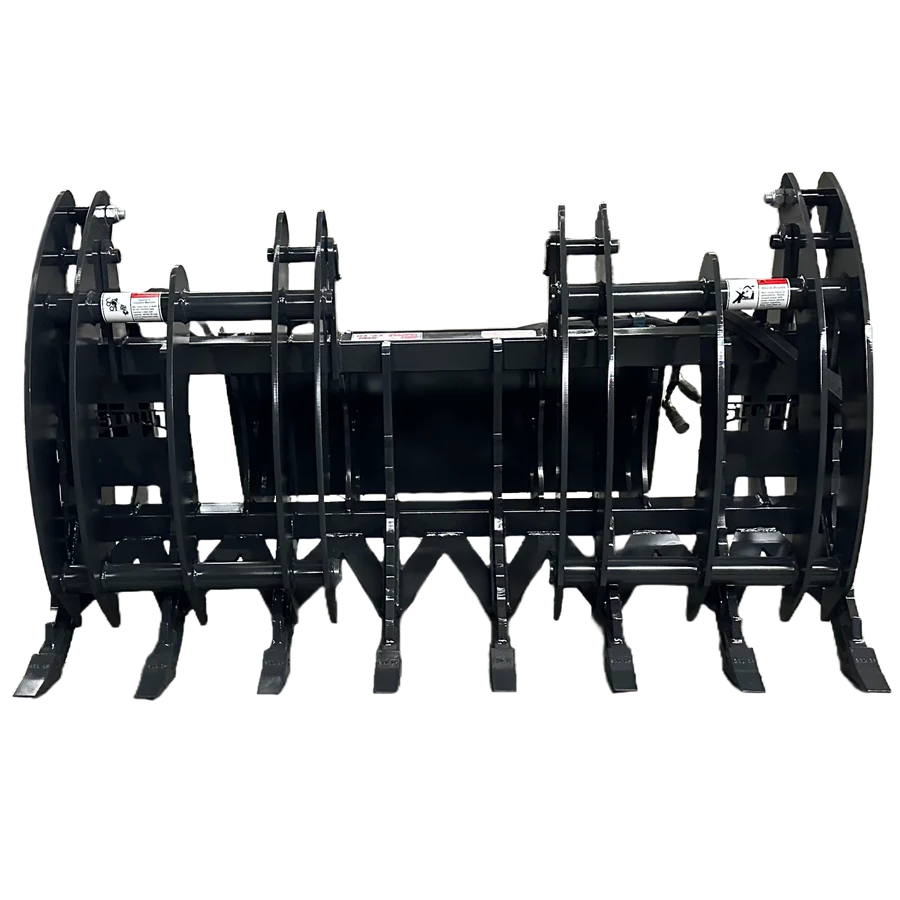

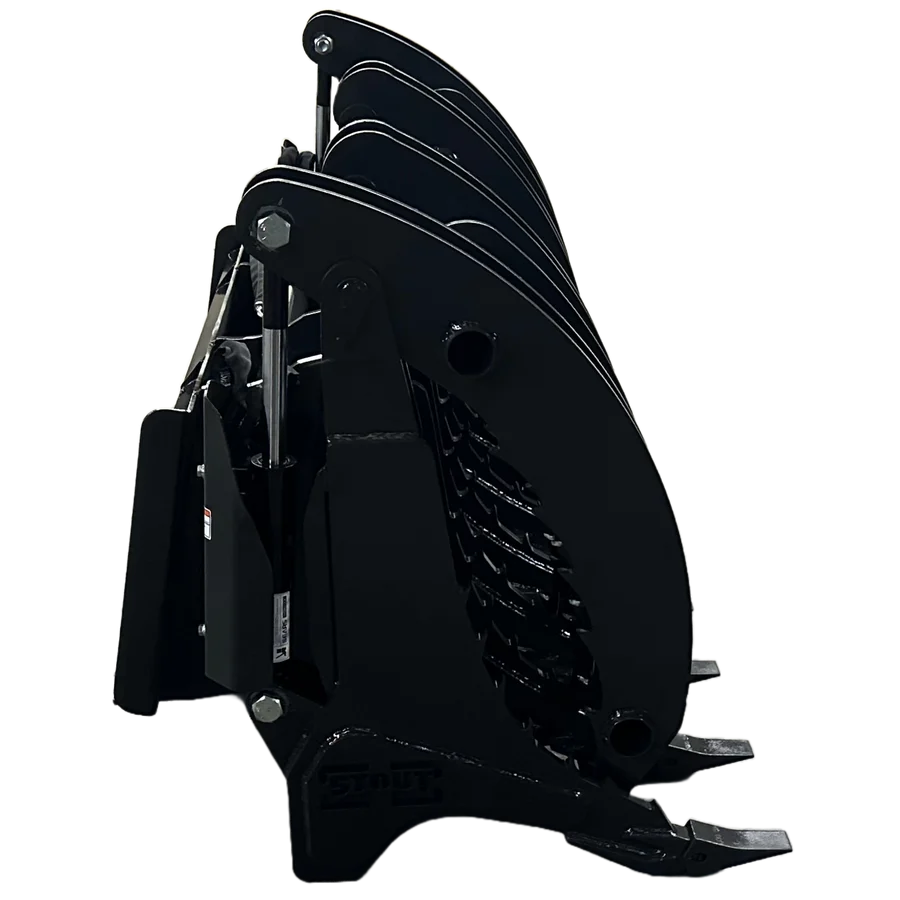

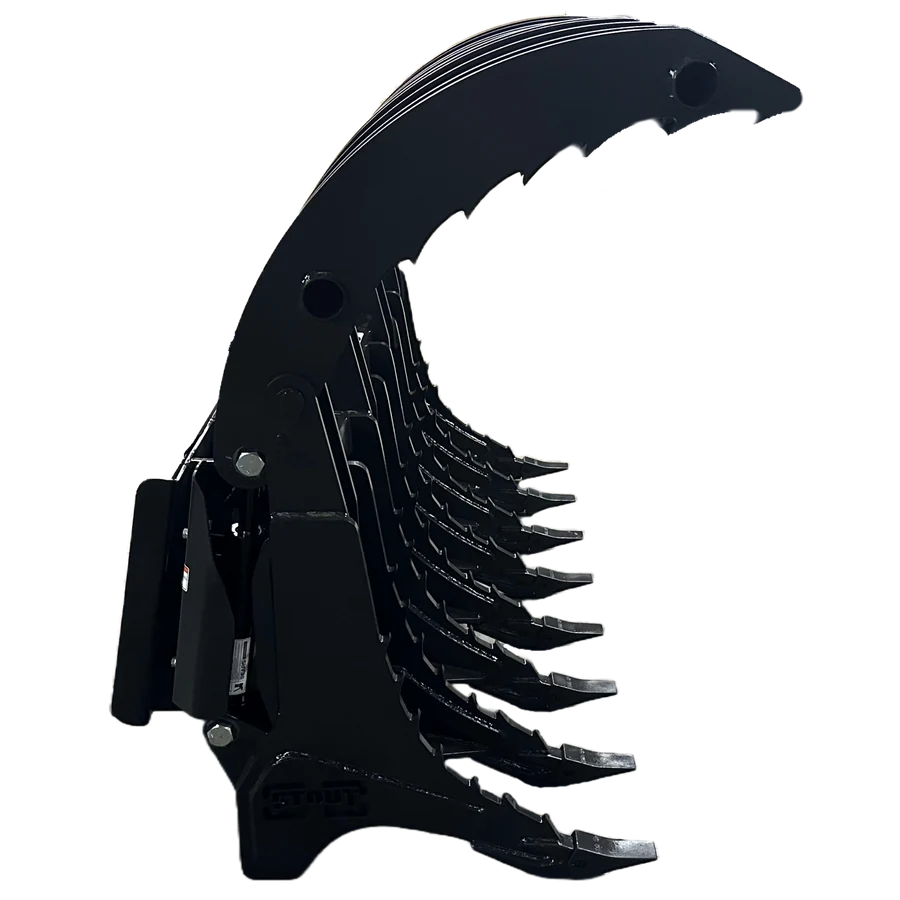

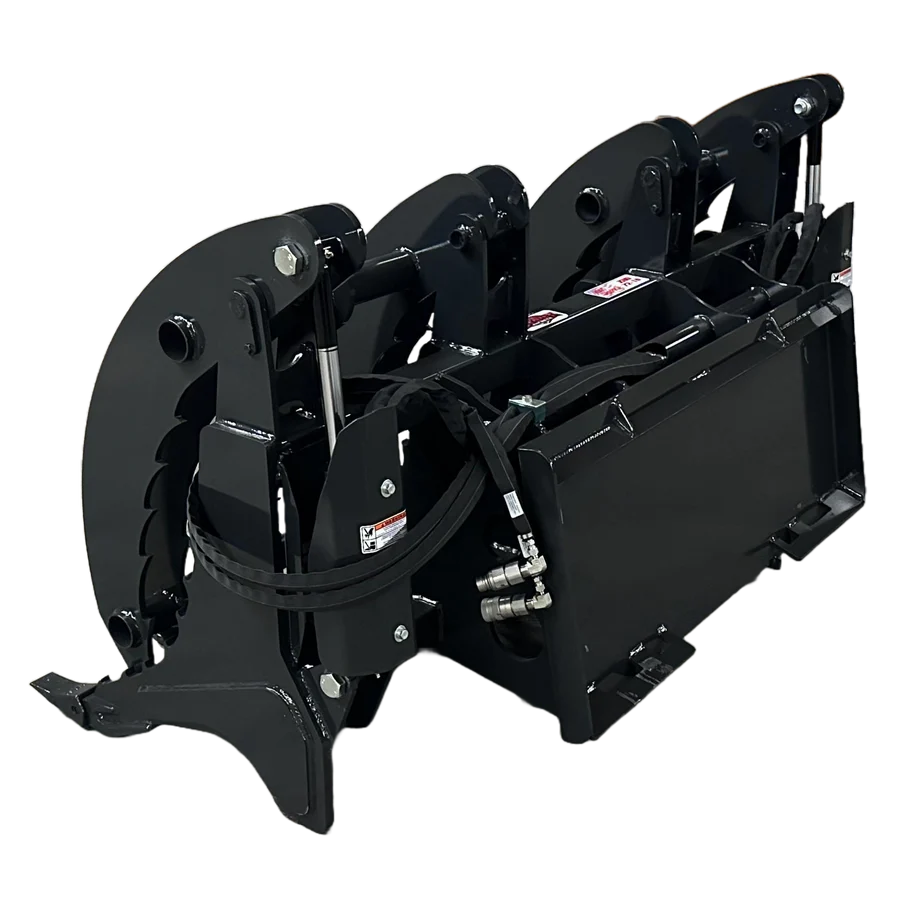

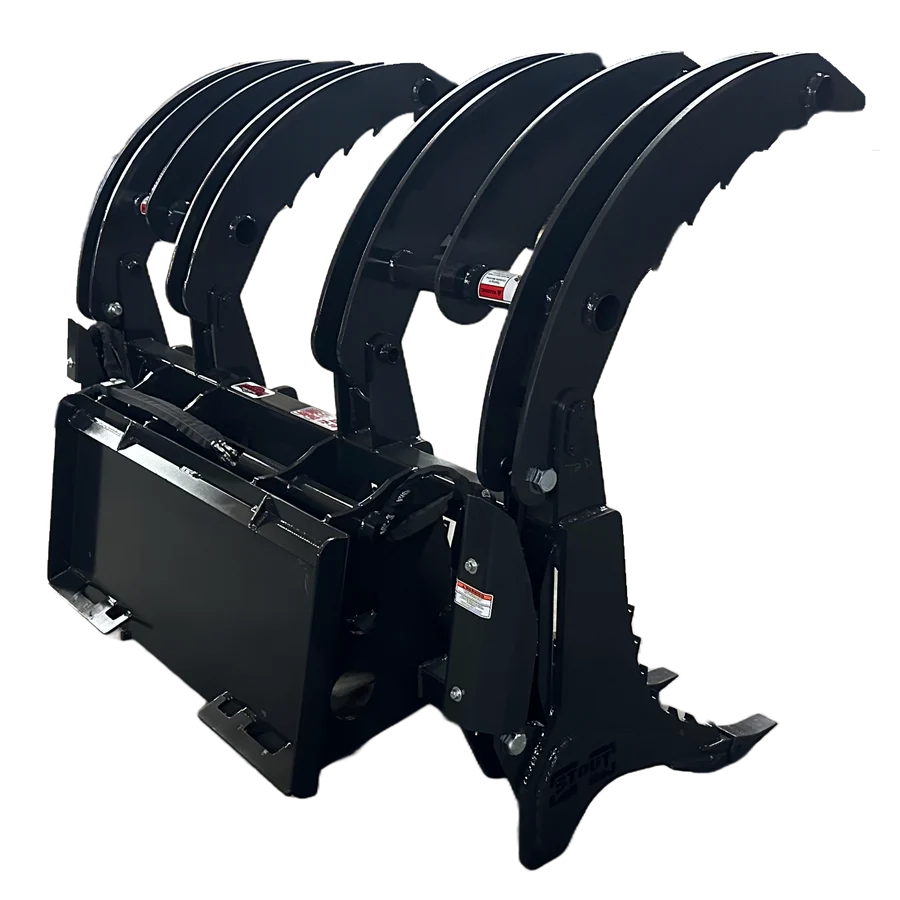

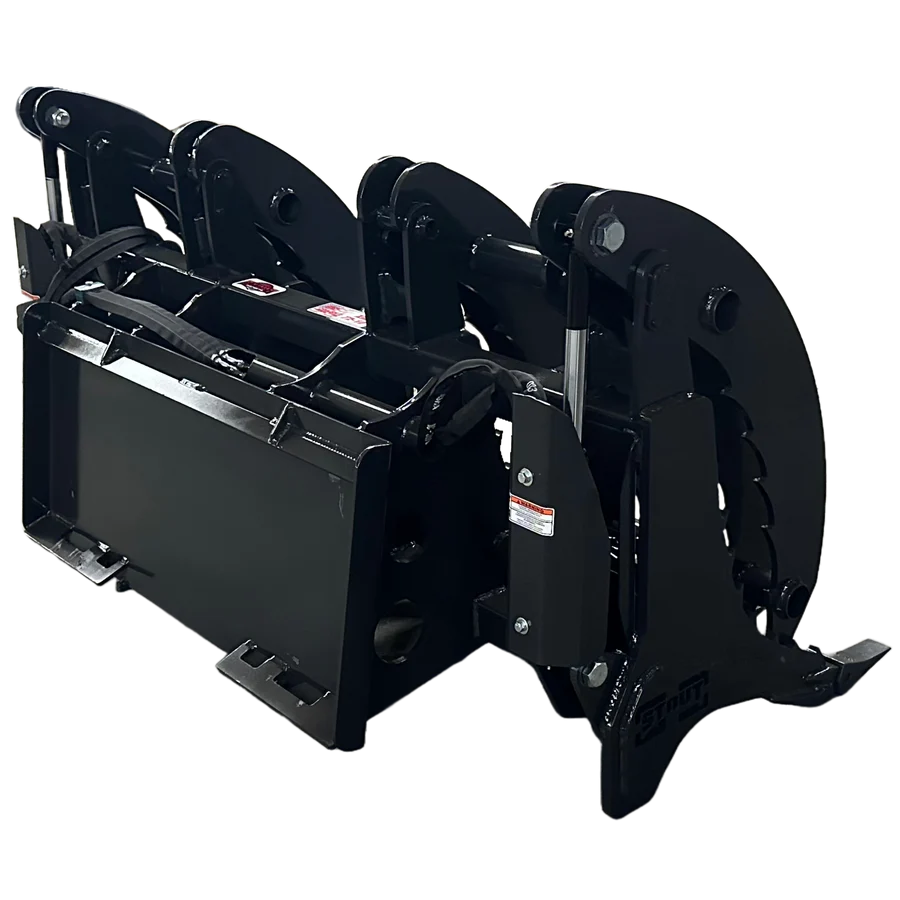

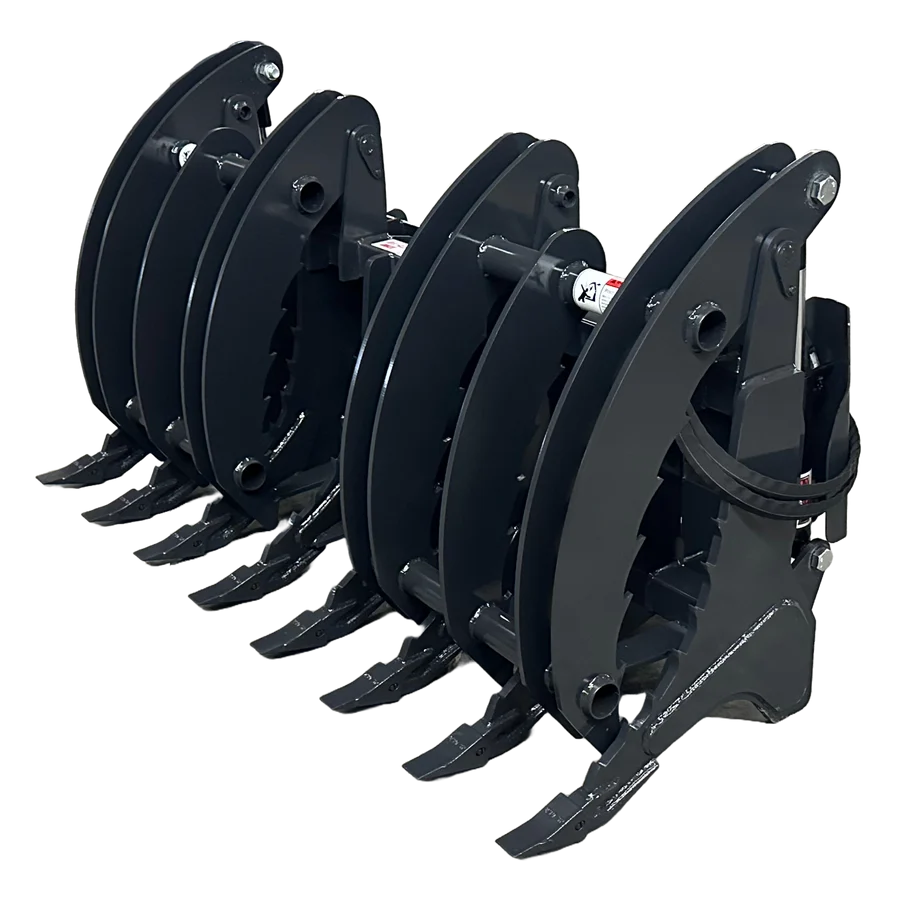

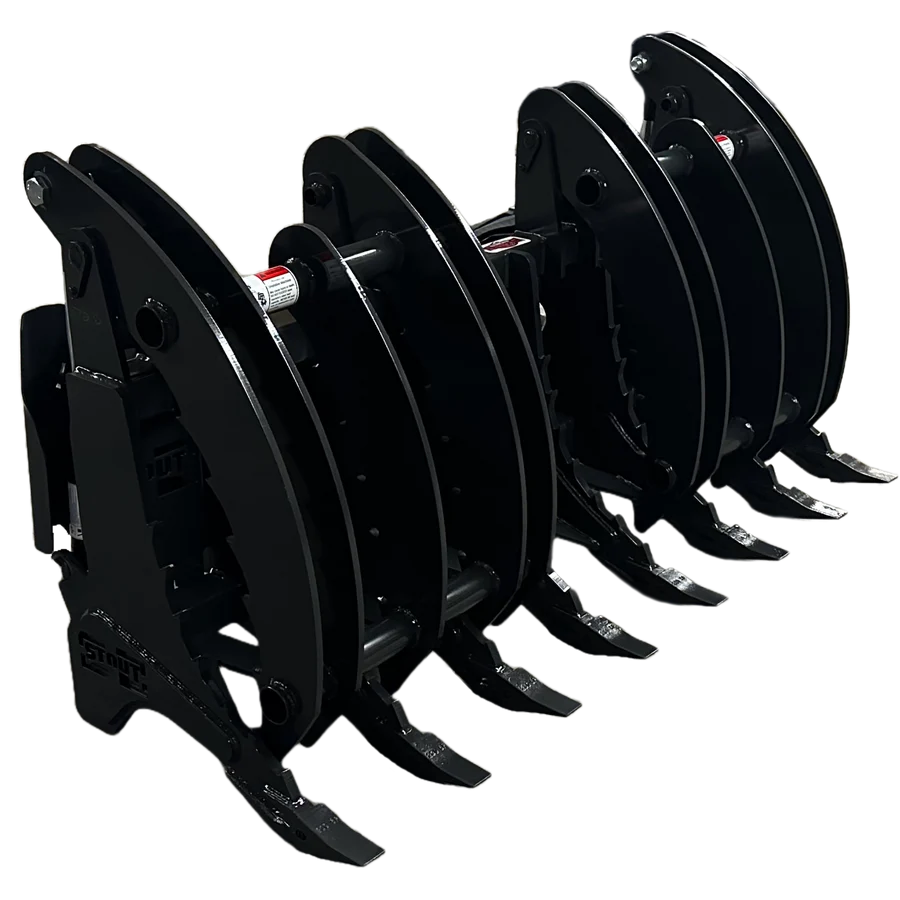

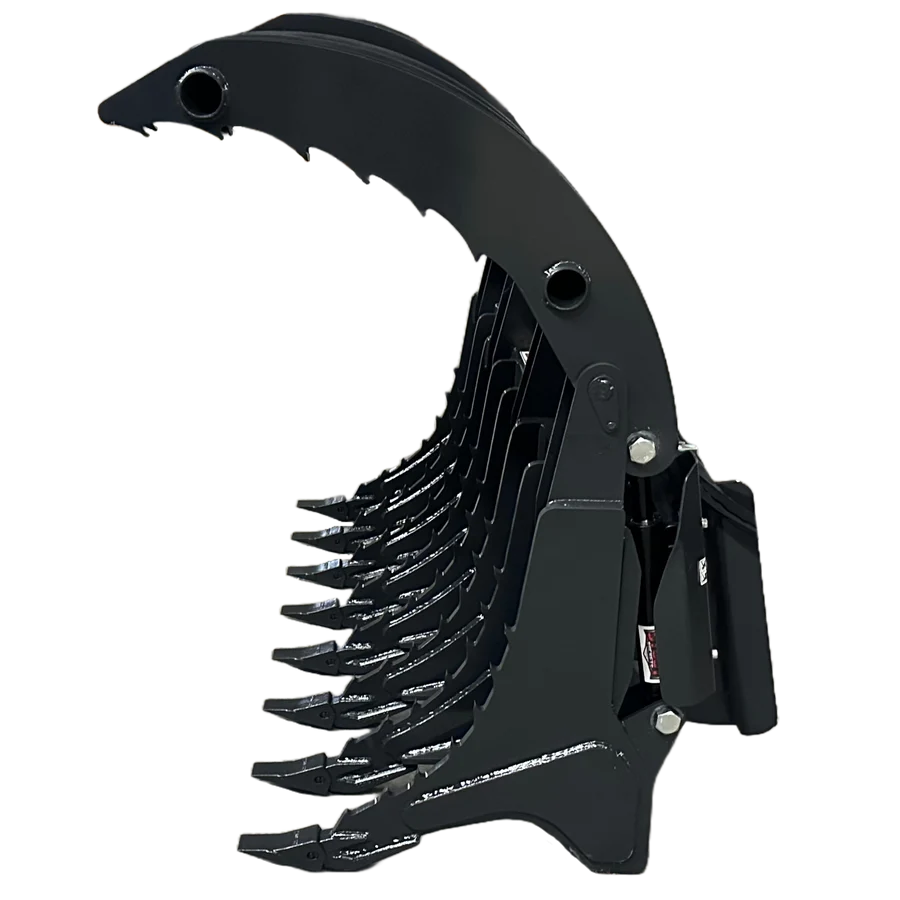

The Stout XHD Root Rake Clam Grapple with dual grapples is a top on the line Xtreme Heavy Duty Grapple designed to hold up to the harshest of conditions.  This Root Rake Clam Grapple is offered in 3 different widths, 92″, 82″, and 72″, and has 3/4″ thick tines equipped with replaceable digging teeth at 10″ spacing. The Independent grapples that have a maximum opening of 46″ to grab even the largest items. All pivot points are fully greaseable and hydraulic hoses are encased in protective sleeving and routed through hose guards and held out of pinch point areas with a keeper.

•  Weights – Unit/Shipping
  • 92″ – 1380 lbs. / 1475 lbs.
  • 82″ – 1250 lbs. / 1295 lbs.
  • 72″  – 1185 lbs. / 1225 lbs.
• Depth – Bucket/Total – 19″/38″
• Height – 38″
• Grapple Opening – 46″
• Bucket/Grapple Widths
  • 92″/24″
  • 82″/24″
  • 72″/24″
• 10″ Tine Spacing
• Digging Teeth w/replaceable caps
  • 92″ – 10 Teeth
  • 82″ – 9 Teeth
  • 72″ – 8 Teeth
• 3/4″ Tine Thickness
• Fully Grease-able – Grapple Pivots and Cylinder Pivots
• All hoses fully sleeved for protection
• Hose keeper block to hold hoses away from pinch point
• 1/2″ Flat Face Couplers
• Hydraulic Cylinder Covers/Guards included
• Hydraulic Cylinder pivots Fully Grease-able
• Hydraulic Cylinders
  • 2″ Bore
  • 8″ Stroke

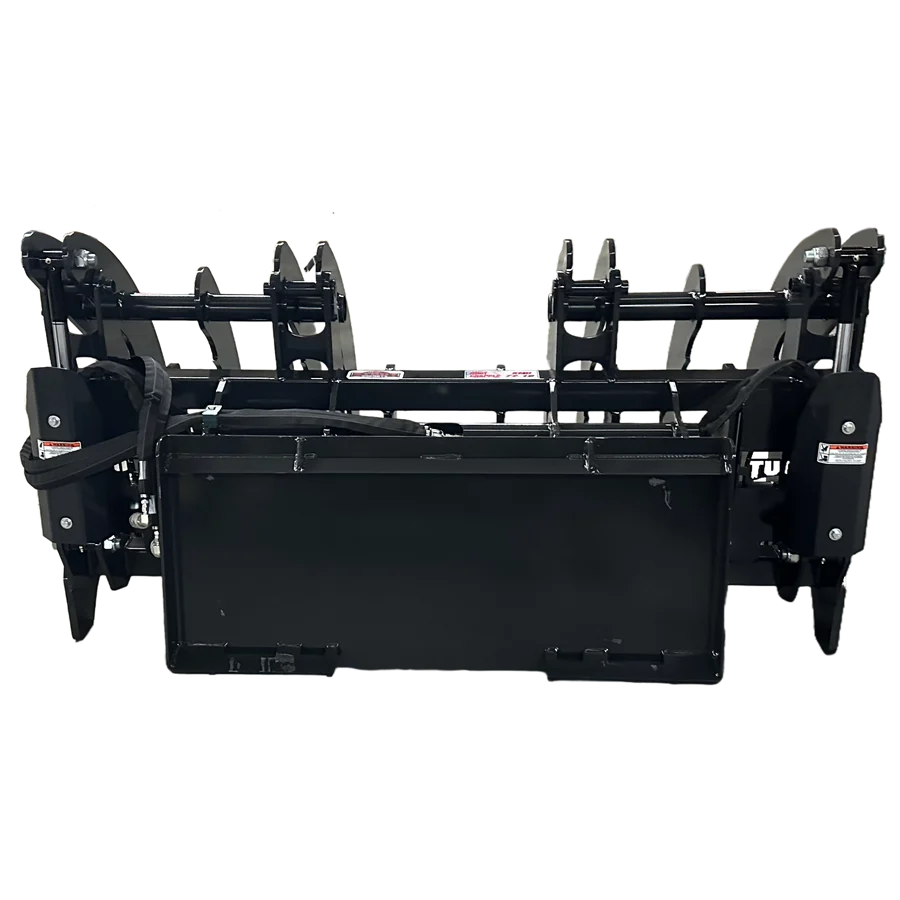

• Universal Skid Steer Quick Attach Mount – J2513 Specifications
• Xtra Tough Grapple
• Made entirely of Grade 50 Steel!
• Made in the USA!
